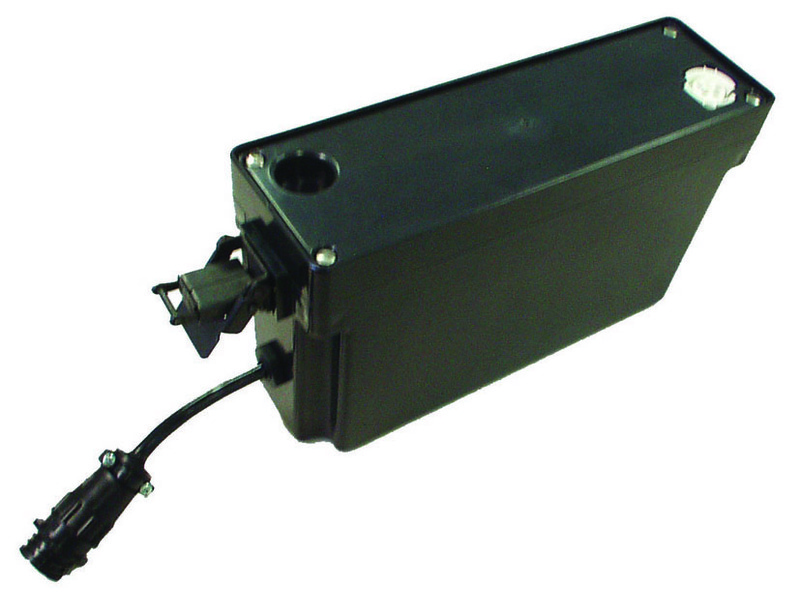

AN/PRC-117/150/PSC-5 SATCOM/HF Adapter
Order
You order is:
AN/PRC-117/150/PSC-5 SATCOM/HF ADAPTER
AN/PRC-117/150/PSC-5 SATCOM/HF ADAPTER
Adapter Description
EFB’s SATCOM/HF Adapter allows the operator to replace the existing battery on an AN/PRC-117/150/PSC-5.
The SATCOM/HF Adapter used in conjunction with the BA-8180/U will provide approximately 4-6 Days of continuous use.
Compatible with the following batteries:
BA-8180/U, ZA-8150, BA-5590/U, BA-5390/U, BB-2590/U, BB-390/U, BB-590/U
EFB P/N: J-6687/U
EFB’s SATCOM/HF Adapter allows the operator to replace the existing battery on an AN/PRC-117/150/PSC-5.
The SATCOM/HF Adapter used in conjunction with the BA-8180/U will provide approximately 4-6 Days of continuous use.
Compatible with the following batteries:
BA-8180/U, ZA-8150, BA-5590/U, BA-5390/U, BB-2590/U, BB-390/U, BB-590/U
EFB P/N: J-6687/U
- SPECS
- DATASHEET
DC Input | 24 VDC Nominal |
DC Output | 24 VDC Nominal |
Operational Temperature | –20°C to +60°C (–4°F to +140°F) |
Dimensions (WxDxL) | 232 mm x 132 mm x 73 mm (9.2" x 5.2" x 2.9") |
Weight | 1.86 kg (4.1 lb) |
Environmental |
-Humidity 95% -Altitude 50,000 ft -IP67 |
